台中愛馬仕 UHPC專案內外牆帷幕生產

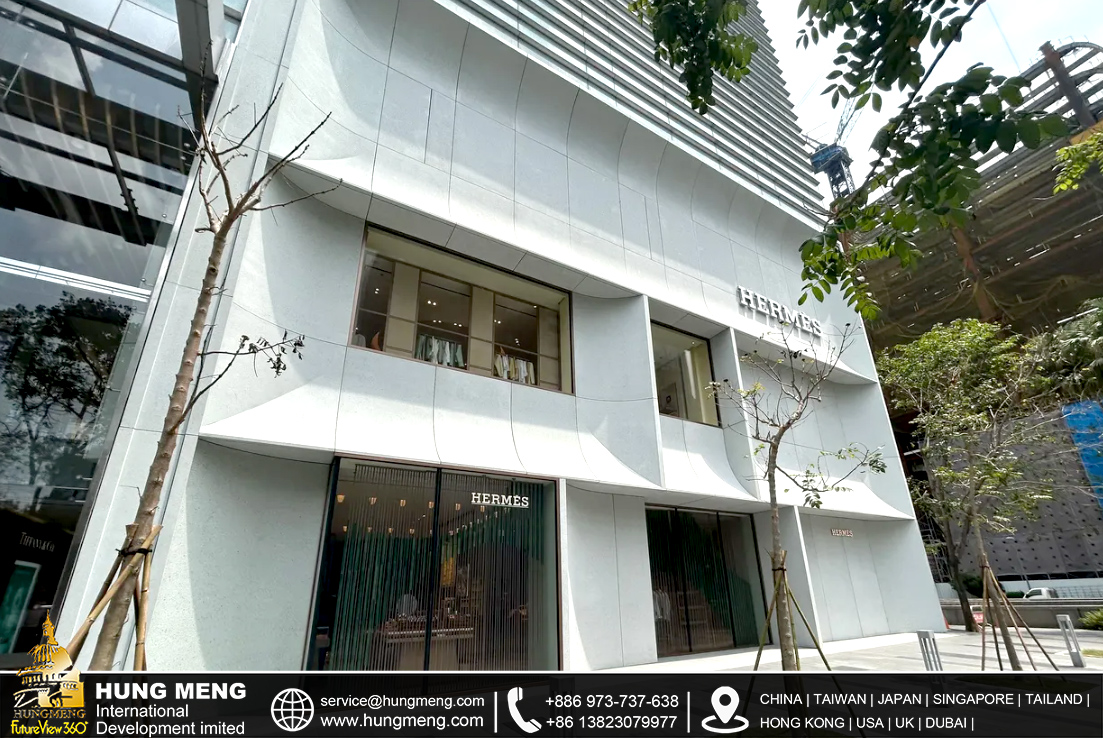

台中 Hermes Taichung UHPC 建築帷幕工程
台中 Hermes Taichung 建築外觀以高端精品品牌所重視的精緻比例、純粹線條與高質感表面為設計核心，透過 UHPC（超高性能混凝土，Ultra-High Performance Concrete）作為建築表皮材料，將建築設計語彙轉化為具有高強度、耐候性與精細造型能力的立面系統。
本案 UHPC 不僅應用於建築外牆帷幕，同時延伸至部分室內牆面與建築細部，使室內外材質語言保持一致。
1. UHPC 外牆帷幕
UHPC 可透過高強度材料特性，製作較薄、尺寸較大的建築面板，適合現代建築對於大尺度、低接縫、精準線條及特殊造型的需求。
外牆系統可由：
- UHPC 面板
- 金屬背框／結構框架
- 隱藏式固定系統
- 連接角件
- 建築主體結構
共同組成完整的乾式外牆帷幕系統。
相較於傳統石材，UHPC 能夠在兼顧結構性能的同時，提供更多自由的造型與表面處理可能性，包括平面、弧面、特殊幾何、細緻紋理及客製化色彩。
2. 室內 UHPC 牆面
UHPC 同樣可以延伸應用於室內空間。

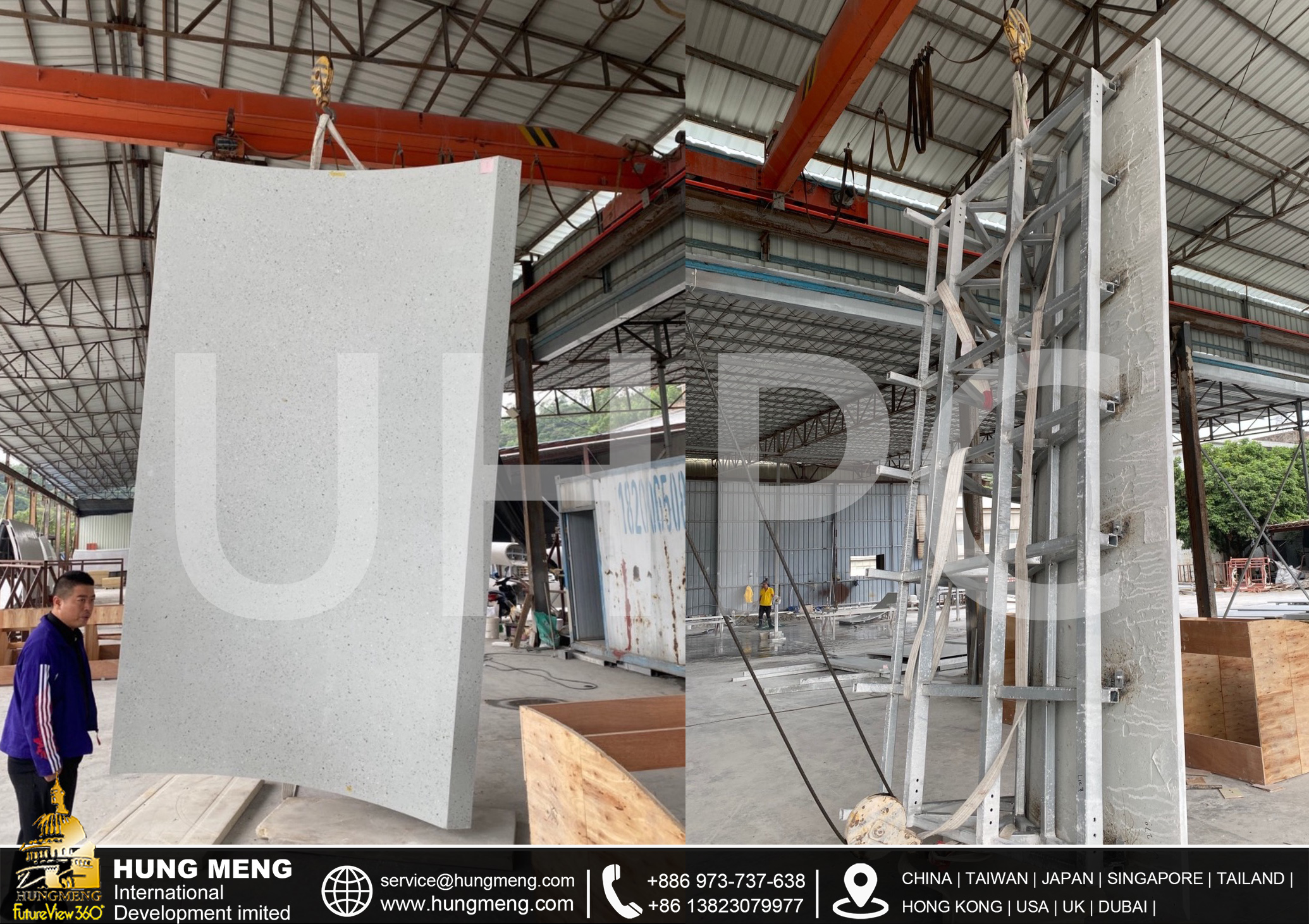

透過工廠預製，可以先完成面板的尺寸、色澤、表面質感及細部造型，再進行現場安裝，降低現場濕式施工的複雜度。
室內應用可包括：
精品店牆面、展示牆、柱體、門框、特色造型牆及建築藝術細節。
如此可以讓建築外牆與室內空間使用相同或相近的 UHPC 材質語彙，形成完整且一致的精品建築風格。
3. UHPC 的核心優勢
高強度
UHPC 的高抗壓與高耐久特性，使其適合高要求的建築立面應用。
薄型化設計
相較於傳統厚重材料，可以依設計與結構需求進行薄型化，有利於大型立面板的設計。
大型化與客製化
可依建築立面尺寸進行工廠預製，減少現場切割及加工。
造型自由度高
可以製作曲面、折線、特殊幾何及精細表面紋理。
耐候性與耐久性
適合台灣高溫、潮濕、雨水及日照環境下的建築外牆使用，但實際耐候性能仍須依配比、表面處理及測試數據確認。
工廠預製、現場組裝
透過 BIM 編號、工廠標準化生產及現場乾式安裝，可提高施工精度與品質控制。
網紅詳細介紹連結:
https://www.popdaily.com.tw/forum/travel/1545444
內外牆介紹 Procast 連結說明:

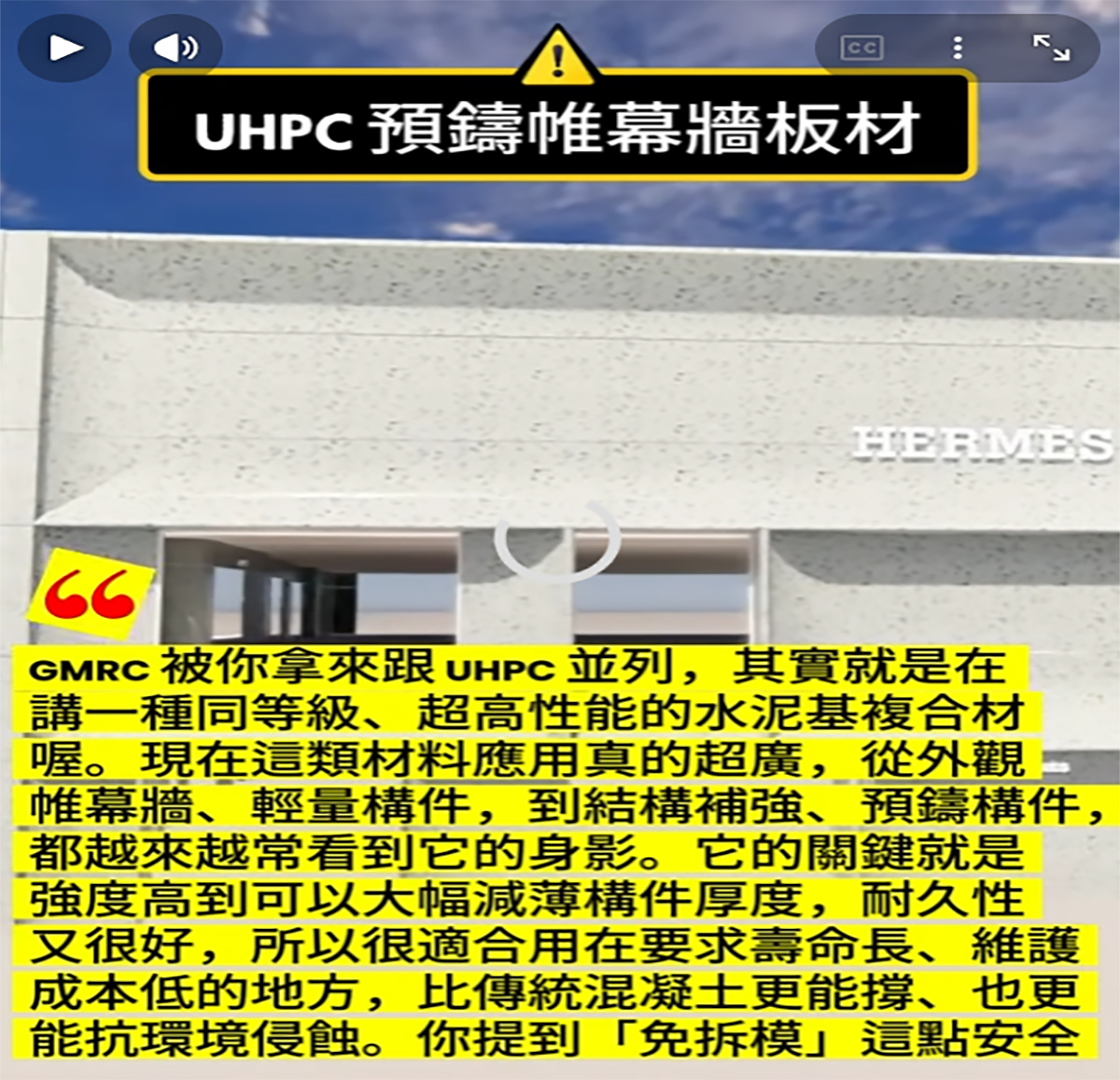

https://youtube.com/shorts/Uksqv37Es4A?si=A33BkPp_wVG-Kryd
Hermes Taichung
UHPC Interior & Exterior Façade System
Hermes Taichung UHPC Façade Project
The Hermes Taichung project incorporates Ultra-High Performance Concrete (UHPC) as a premium architectural façade material, translating the design language of a luxury retail environment into a refined architectural skin characterized by precise proportions, clean lines, sophisticated textures, and high-performance material properties.

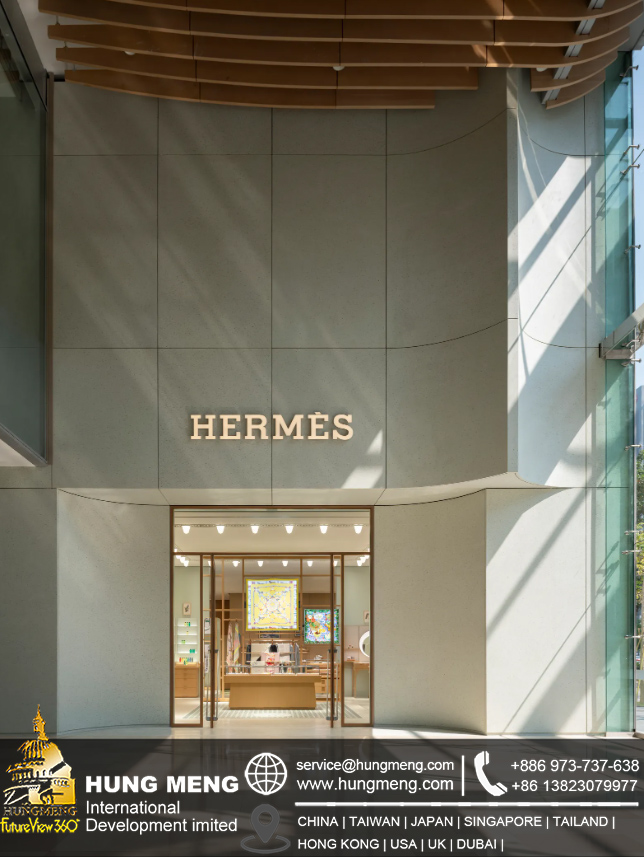

UHPC is applied not only to the exterior building façade, but also to selected interior wall surfaces and architectural details, creating a consistent material language between the exterior and interior spaces.
1. UHPC Exterior Curtain Wall
UHPC provides the high strength and design flexibility required for contemporary architectural façades.
The exterior façade system can be composed of:
- UHPC façade panels
- Metal supporting frames
- Concealed fixing systems
- Connection brackets
- Primary building structure
Together, these components form an integrated dry-installed UHPC façade system.
Compared with conventional stone cladding, UHPC provides greater flexibility in terms of panel geometry, surface treatment, texture, color and customized architectural forms.
It can be manufactured in a variety of configurations, including:
- Large-format panels
- Flat panels
- Curved surfaces
- Geometric profiles
- Customized textures
- Architectural feature elements
2. UHPC Interior Wall Applications
UHPC can also be extended from the exterior façade into the interior architectural environment.
Through factory-controlled prefabrication, each panel can be manufactured according to the required:
- Dimensions
- Color
- Surface texture
- Edge details
- Architectural geometry
The finished components can then be transported to the project site for installation.
Potential interior applications include:
Luxury retail walls, feature walls, columns, architectural frames, display backgrounds and customized decorative elements.
Using UHPC across both exterior and interior applications creates a continuous architectural language and reinforces the premium character of the space.
3. Key Advantages of UHPC
High Performance
UHPC offers high strength and excellent durability characteristics for demanding architectural applications.
Slim and Lightweight Architectural Profiles
Its high-performance material characteristics allow designers to explore thinner architectural elements while maintaining the required structural and performance criteria.
Large-Format Prefabrication
Panels can be factory-produced according to the architectural module, reducing on-site cutting and fabrication.
Architectural Freedom
UHPC can be molded into complex geometries, curved surfaces, sharp edges and customized textures.
Durability
UHPC is well suited to demanding exterior environments when the mix design, reinforcement, surface treatment and testing are appropriately specified.
Factory Production + Site Installation
BIM-based numbering, controlled factory production and dry installation can improve dimensional accuracy, installation efficiency and overall quality control.
台中 Hermes Taichung UHPC 工程，以超高性能混凝土打造內外一體的建築帷幕系統，結合大型預製面板、精準造型、隱藏式固定與乾式安裝技術，呈現高端精品建築所要求的細緻質感與現代建築語彙。
The Hermes Taichung UHPC project integrates Ultra-High Performance Concrete into both exterior and interior architectural applications, combining large-format prefabricated panels, precision detailing, concealed fixing systems and dry installation to create a refined architectural façade with the sophisticated character expected of a luxury retail environment.
